Scout's notes

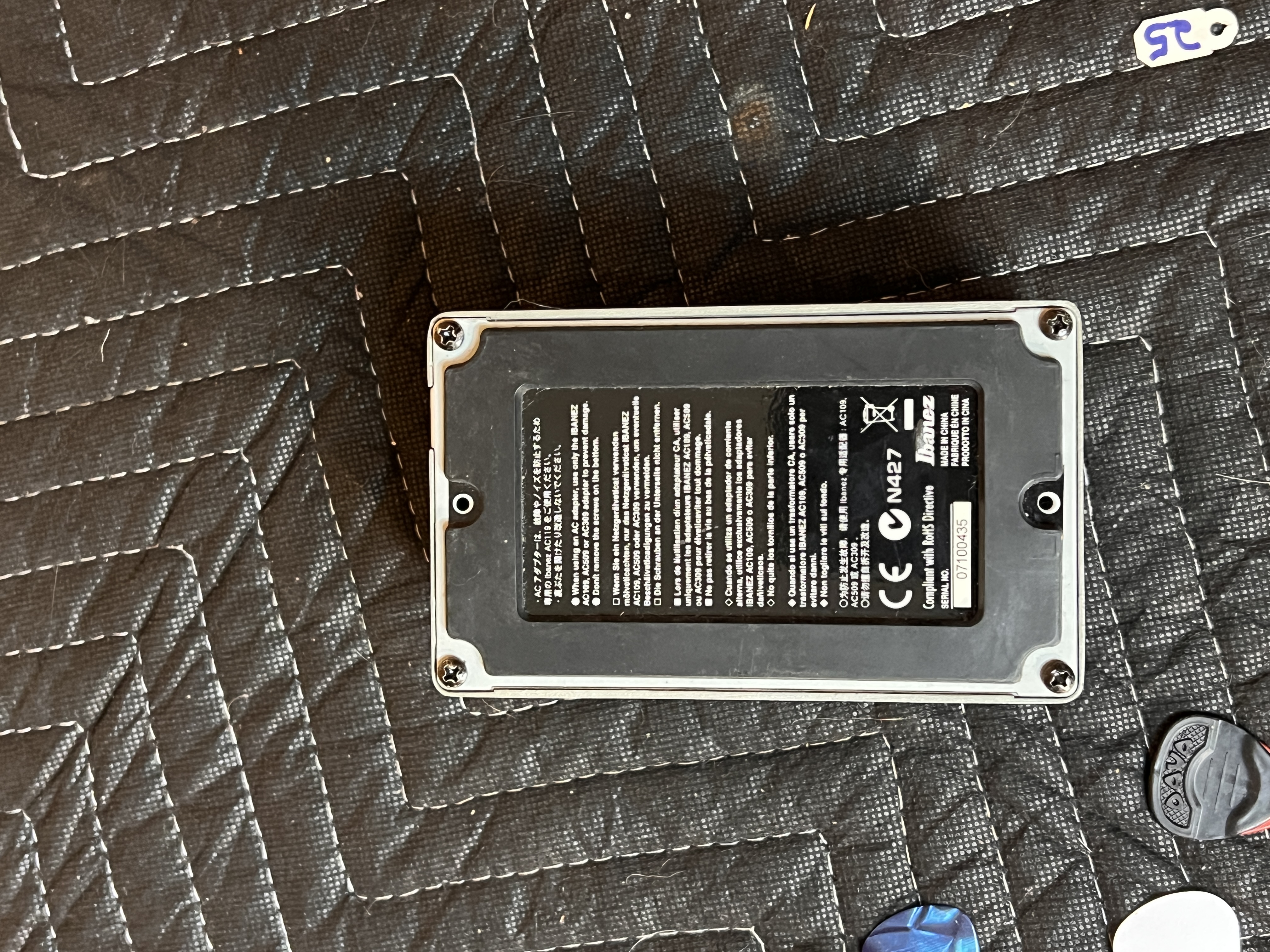

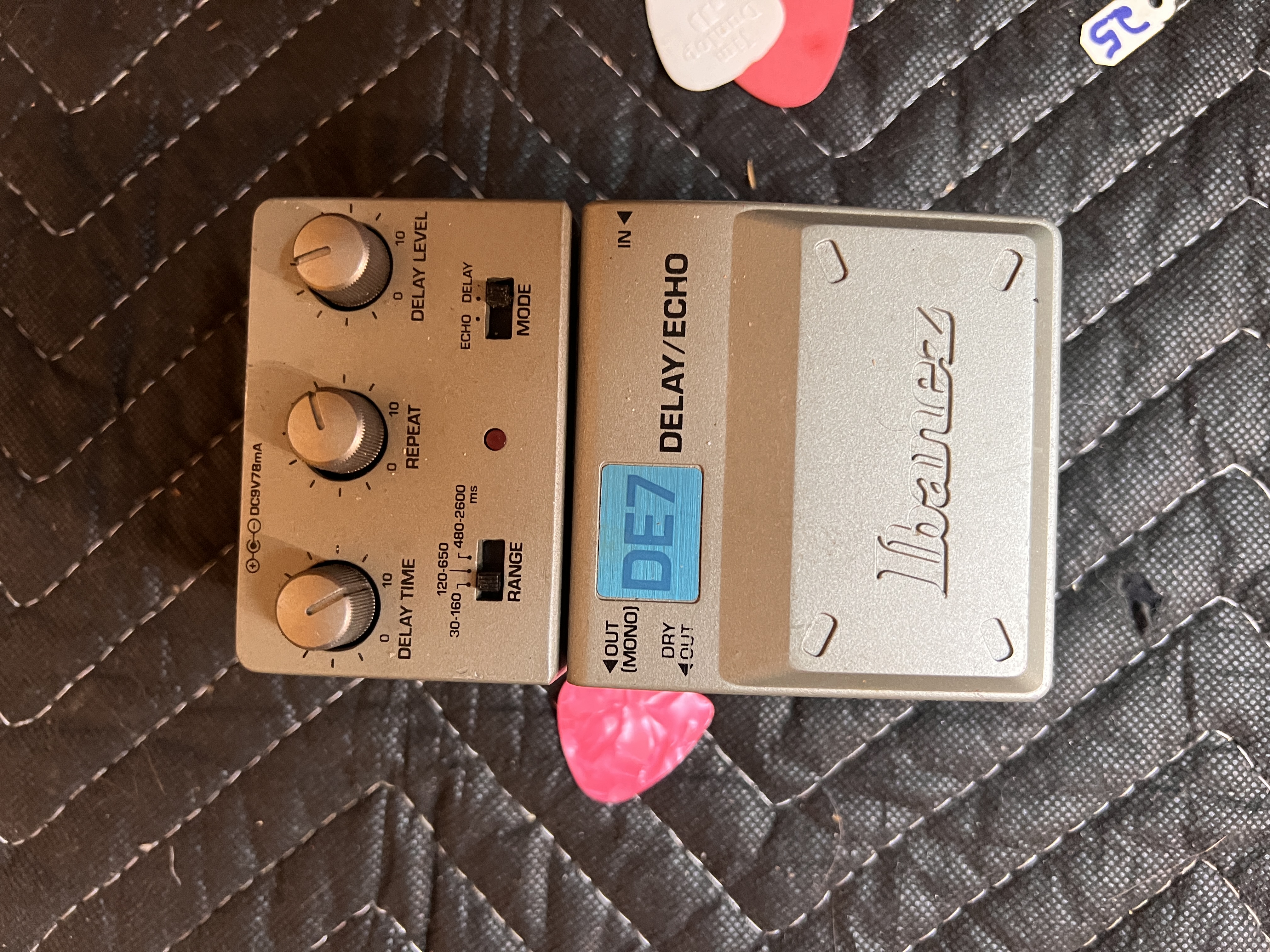

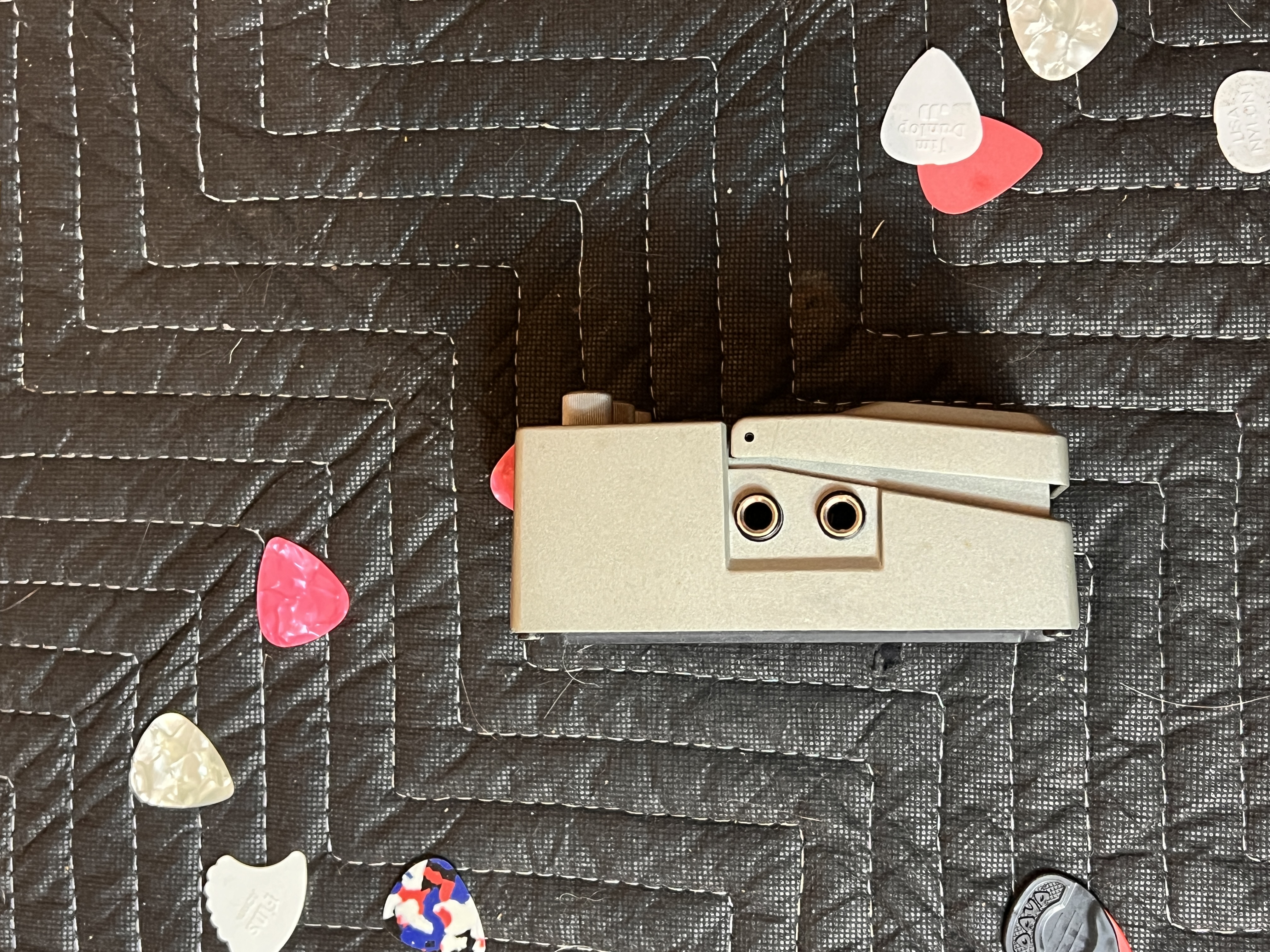

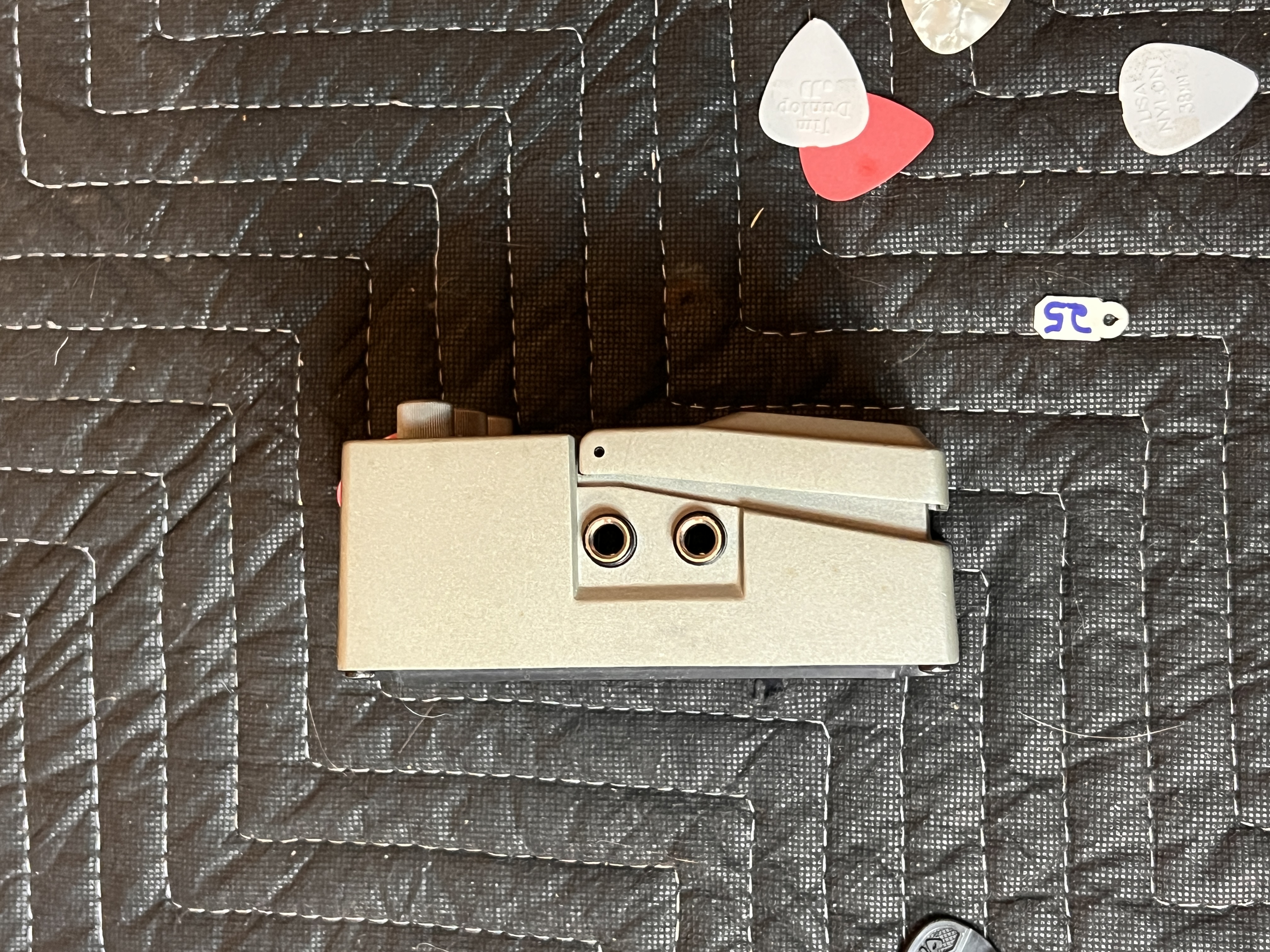

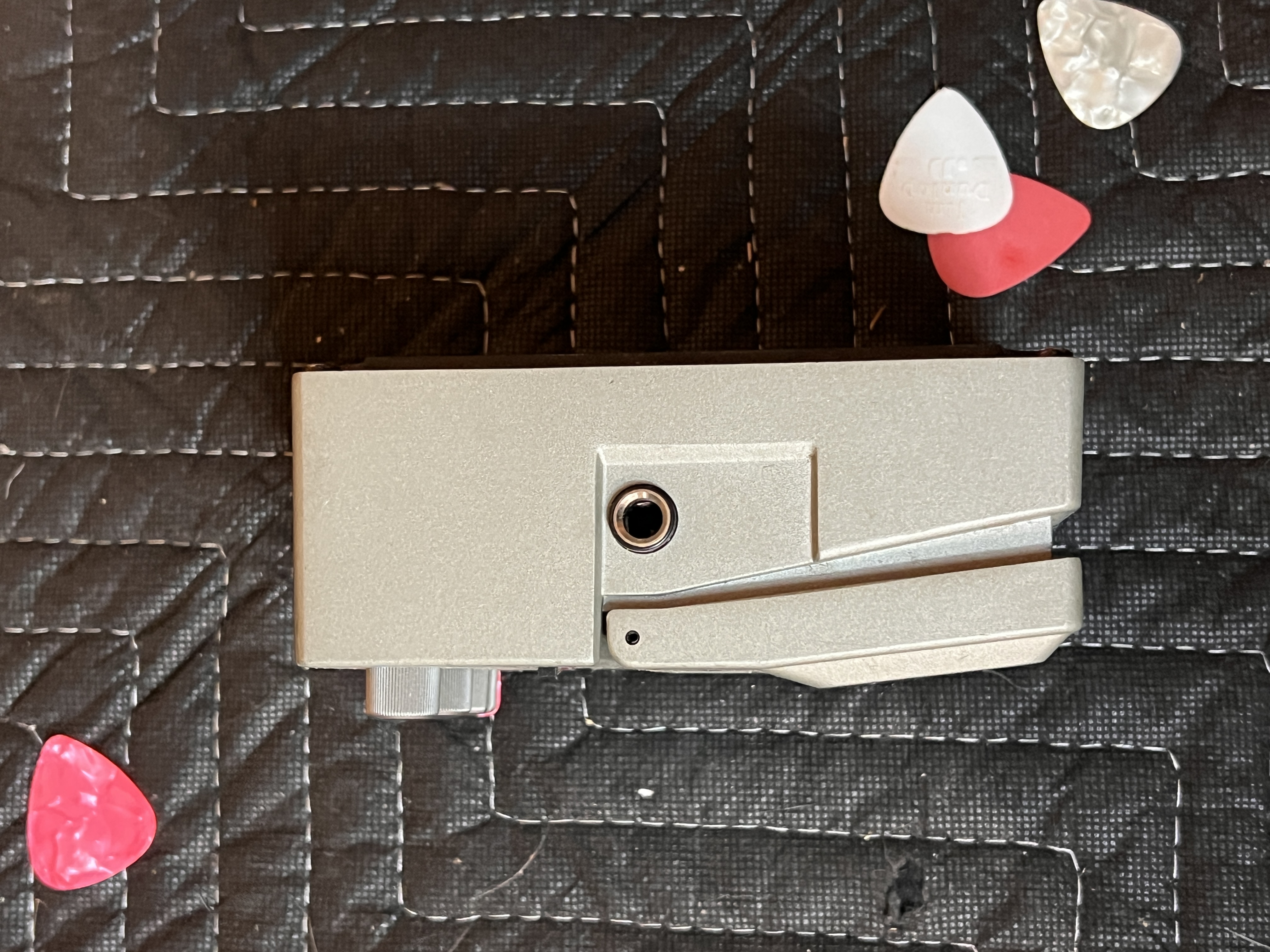

An Ibanez DE7 Delay/Echo guitar effects pedal from the Tone-Lok series, constructed with a silver-finished die-cast metal housing and a rubberized base pad. This unit features the series-specific recessed push-lock control knobs for Delay Level, Repeat, and Delay Time, designed to prevent accidental setting changes. The pedal includes a mode switch for Echo or Delay settings and a range switch with three selectable delay time intervals: 30-160ms, 120-650ms, and 480-2600ms. Connectivity is provided via a 1/4 inch mono input, a 1/4 inch mono output, and a dedicated 1/4 inch dry output jack. The unit is powered by a 9V DC center-negative adapter (78mA) or a 9V battery. The base features a black identification label with the Ibanez logo, CE and N427 marks, and the serial number 07100435. It was manufactured in China.
